Filtration System Solution

EY Series-water filtration systems

The EY series filter unit is equipped with a straight flange on the pipeline for easy installation and integration with any straight line. Raw water enters the interior of the screen from the inlet of the filter and then flows through the screen to the outlet of the filter.

The EY Series filter is a self-cleaning filter for any environment. During the self-cleaning process of the entire filter, the system continuously flows, and the differential pressure switch also continuously monitors the pressure difference inside and outside the filter.

These automatic water filters provide solutions for a variety of industrial, irrigation and municipal applications.

self cleaning water filter

Screen Options

                                         Sintered Mesh on Perforated Metal Plate

Perforated-Sheet-Sintered-Metal-Wire-Mesh
  • Degree of Filtration Options (Micron): 5, 10, 25, 50, 75, 100, 120, 150, 200, 300, 500, 1000, 2000.
  • Material: Standard 316L stainless. Screen is fused to stainless steel perforated plate for maximum durability.
  • Particle Removal: 98-100% particle removal efficiency above the degree of filtration
  • Flow Capacity: Maximize flow per square inch of screen area with sintered mesh

                                                               Wedge Wire

Stainless-Steel-V-Wedge-Wire-Wrapped-Johnson
  • Degree of Filtration Options (Micron): 25, 50, 75, 100, 120, 150, 200, 300, 500, 1000, 2000.
  • Material: Standard 316L stainless.
  • Particle Removal: 98-100% particle removal efficiency above the degree of filtration. Great for removal of fibrous material including pulp and paper fibers, fibrous algae, fruit fiber in juice processing, etc.
  • Bursting Pressure: Robust construction ideal for high pressure environments

How to Size and Select Self Cleaning Water Filter

STEP#1- Determine Desired Micron Filtration Level
Guidelines:

  • City Water > 5 micron
  • Ground/Well Water > 25 micronSeawater >40 micron
  • Cooling Tower Process water> 50 micron
  • Lake/Pond Water > 75 micron
  • River/Produced/Waste Water > 150 micron
  • Typically you will use 1/3 of the micron rating of the downstream equipment

STEP#3- Identify Desired Filter Configuration

  • Screen options wedge net/porous metal sheet sintering Net
  • Working pressure 10 bar / 16 bar / 25 bar
  • Heavy-duty models offer higher flows

STEP#2-Determine Contamination Level of Current Water Source (ppm)

  • Clean: 0 to 25 PPM
  • Moderate: 26 to 70 PPM
  • Dirty: 71 to 100 PPM

STEP#4-Select Filter Model From Table

  • Identify model with equal or higher amount of square inches of screen
  • Verify that model selected has a maximum flow higher than required total flow

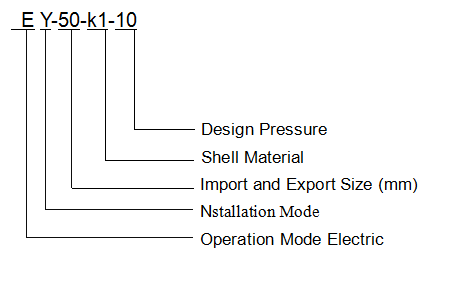

Housing Part Number Format

EY Series self-cleaning filter model

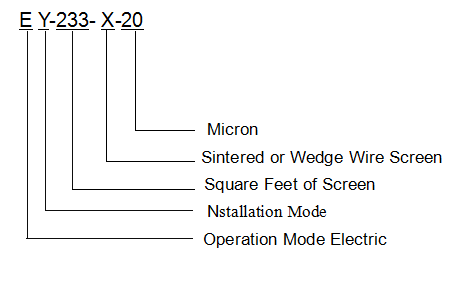

Screen Part Number Format

EY Series self-cleaning filter cartridge

Self-cleaning filter selection configuration

EY Self-cleaning filter selection parameters

Install notice

  • One check valve must be installed at filter outlet. Return pressure and back water is forbidden, in case of screen out of shape.
  • If system wok pressure over 0.8MPa, should install break valve at drain pipe to reduce impact to screen.
  • Notice motor rotating direction. Shut off power immediately once back rotating (anti-clock wise ).
  • occurs. )
  • Installation each part according to arrow direction.
  • Sudden pressure relief at outlet pipe is forbidden. Take normal work pressure 1.3MPa for example, if suddenly open branch valve at outlet, it will occur instant huge different pressure, which damage screen.
  • Make sure filter used under correct work pressure, capacity.
  • If alarms, open by-passvalve for temporary back washing solutions.
  • Make sure control box have constant power supplv. If power off, users can open by-pass valve, close in and outlet valve and control box switch.

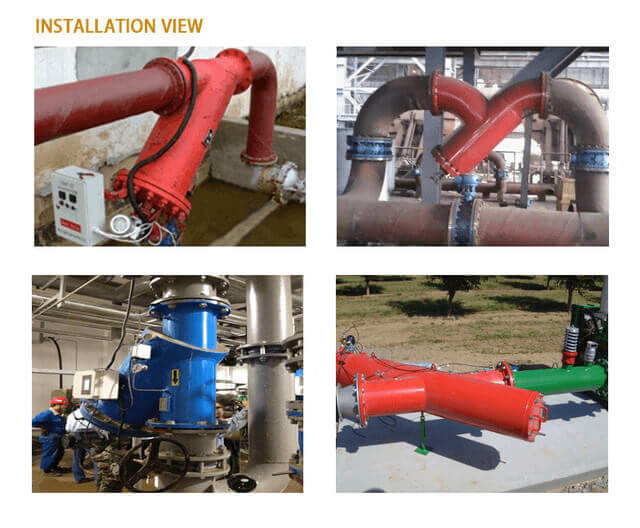

Installation View

EY Self-cleaning filter field application installation

We can choose the filtering system suitable to your practical needs according to your specific parameters If convenient, please send to me more detailed information as follows:

1.The name of the filter media?
2. Flow rate?
3. Liquid viscosity?
4. Filter rating?
5. Working pressure?
6. Working temperature?
7. Impurity content and nature(solid or soft)?
8. Connection size?
9. Housing material?
10. Do you need explosion protection?
11. Type of discharging valve? electric valve? or pneumatic ball valve?

Then I will offer you our best price ASAP.
