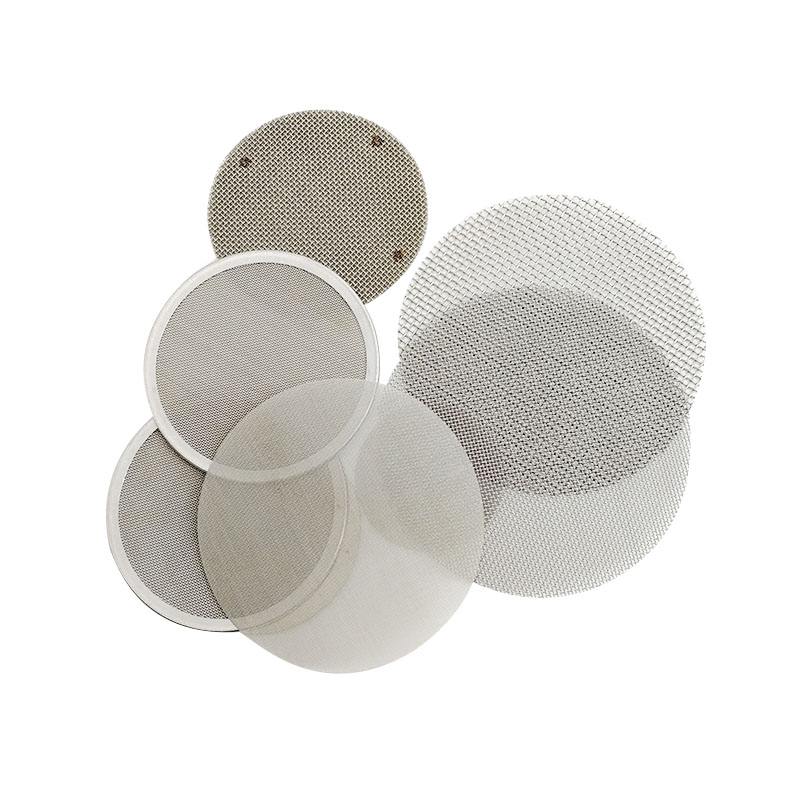

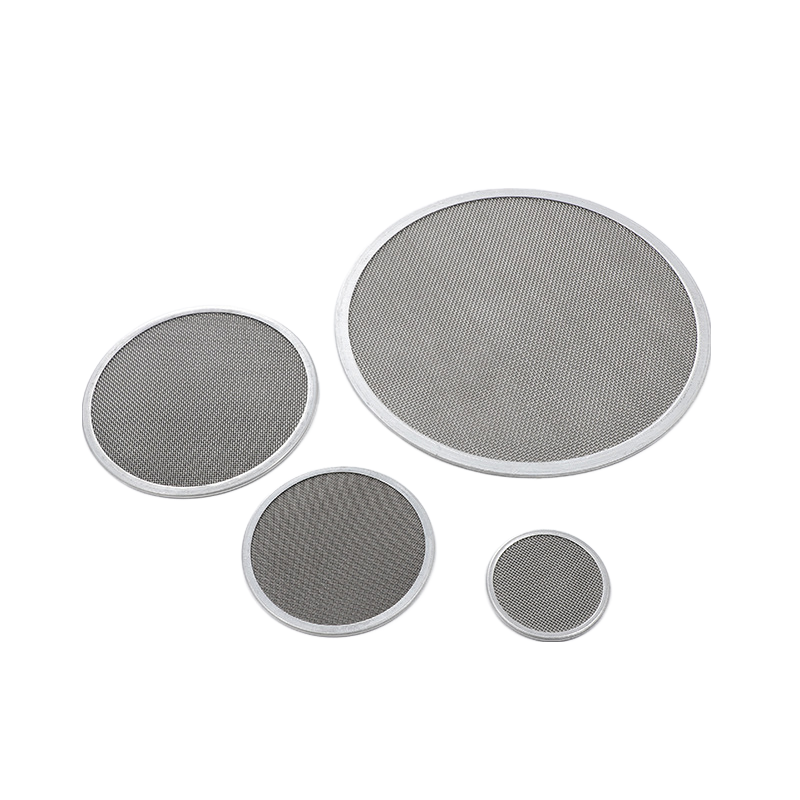

Wire Mesh Disc
Introducing our premium-quality Wire Mesh Disc, meticulously crafted to meet the highest standards in filtration and separation applications. As a leading Filter Element in the industry, it stands out in form and function. Manufactured from top-grade stainless steel, this disc ensures durability, corrosion resistance, and long service life. Its okay uniform mesh structure guarantees optimal filtration performance, making it the ideal choice for industrial and domestic use.
Whether you're straining, sieving, or filtering, our Saifilter Wire Mesh Disc provides consistent and reliable results every time. The precise construction allows easy cleaning and maintenance, ensuring it remains a valued tool in your operations. Using standard wire mesh material configuration, the cost of manufacturing wire mesh filter discs is relatively low, and our Wire Mesh Discs are very suitable for low-cost filtration solutions.
Specifications
- Disc diameter: 5 - 550mm (Maximum customizable: 3800mm)
- Disk shape: circle, ring, rectangle, crescent, semicircle, square, oval, special shape, etc
- Weave type: plain weave, twill weave, Dutch weave
- Number of layers: single or multi-layer spot welding
Structure Type
According to the specific application needs of customers, Saifilter provides customized wire mesh discs of different structural types and materials, including edge wrapping, multi-layer wire mesh disc spot welding combinations, special shapes, etc. Our production process strictly follows the design process requirements, which include customization of shape, size, thickness, weave type, and material. To ensure Stainless Steel Filter Discs meet your application.

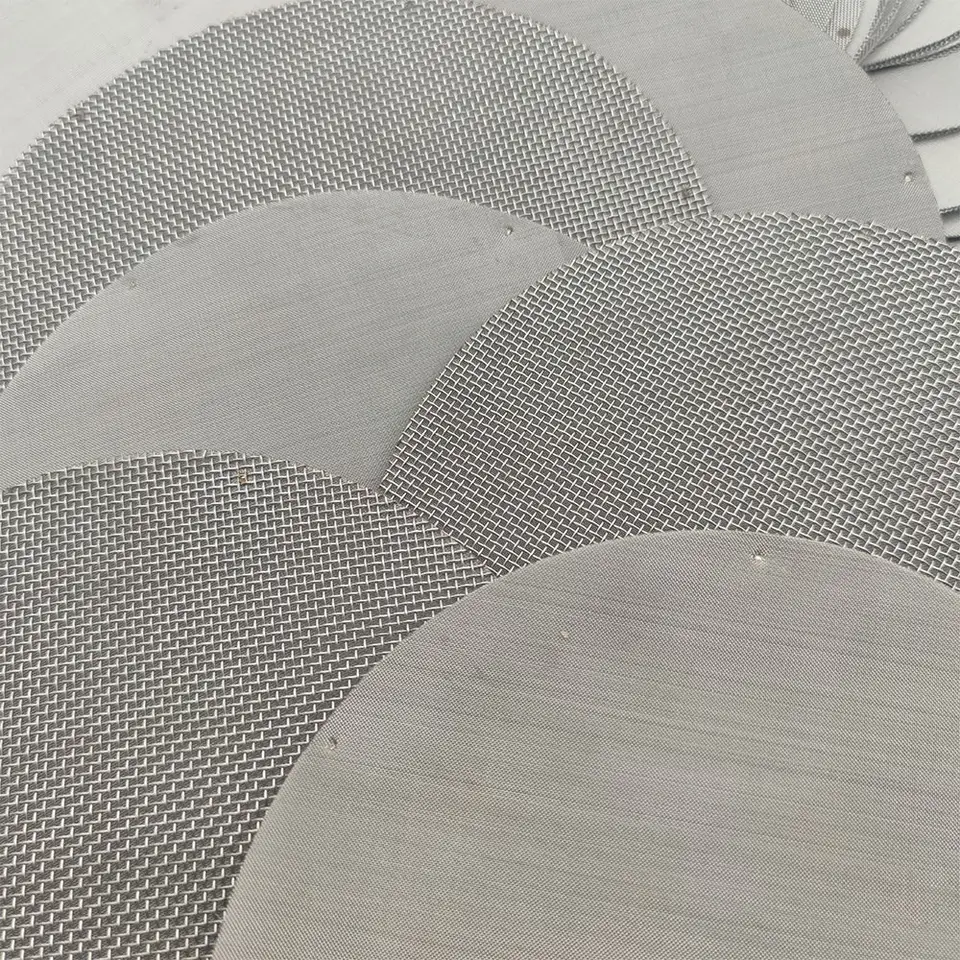

Multi-Layer Wire Mesh Disc Spot Welding

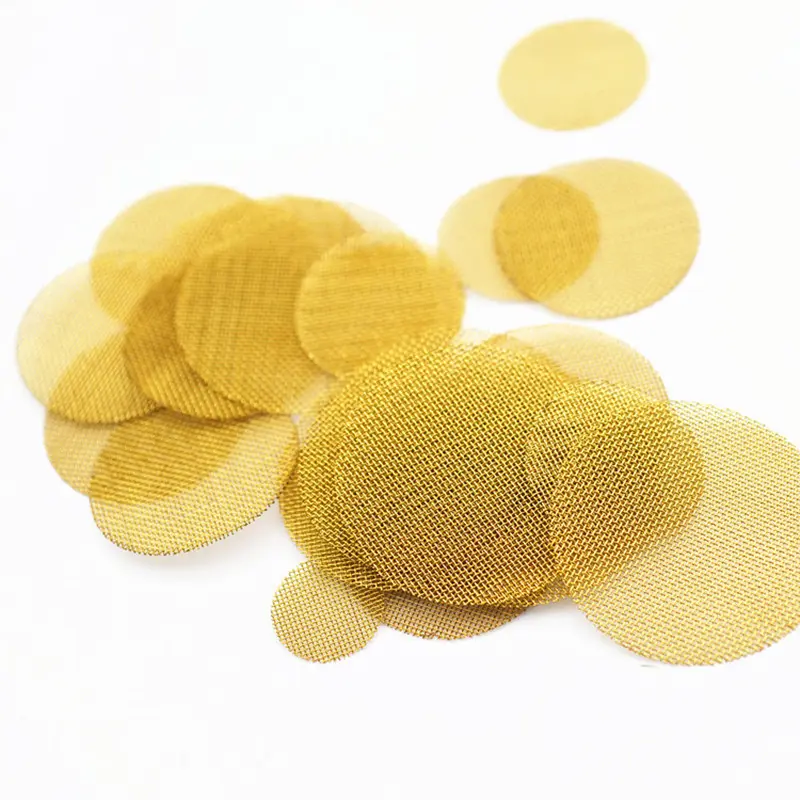

Brass Mesh Filter Discs

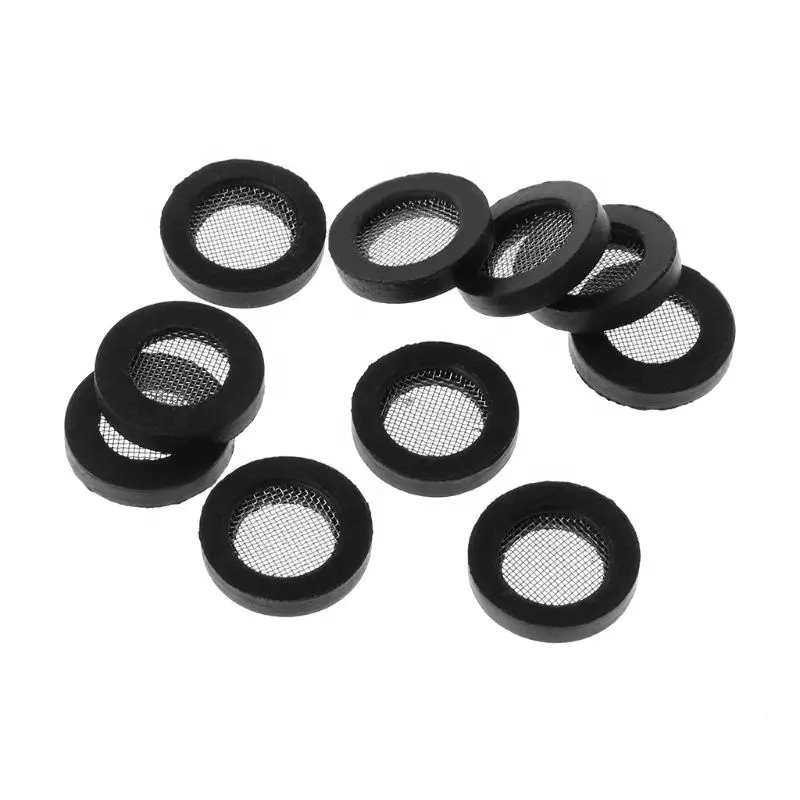

Rubber Edging Mesh Filter Discs

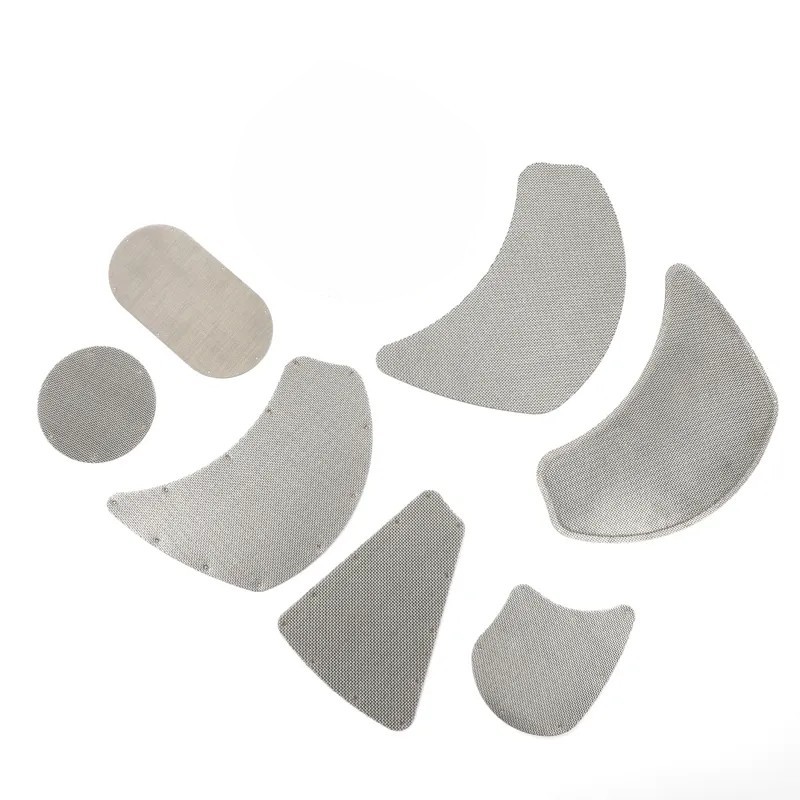

Customized Shapes Wire Mesh Disc
Stainless Steel Woven Wire Mesh (Plain Weave) Disc Screen
| Mesh/inch | Wire Dia (mm) | Aperture (mm) | Mesh/inch | Wire Dia (mm) | Aperture (mm) | Material (AISI) |
|---|---|---|---|---|---|---|
| 2 | 1.8 | 10.9 | 60 | 0.15 | 0.273 | |
| 3 | 1.6 | 6.866 | 70 | 0.14 | 0.223 | |
| 4 | 1.2 | 5.15 | 80 | 0.12 | 0.198 | |
| 5 | 0.91 | 4.17 | 90 | 0.11 | 0.172 | |
| 6 | 0.8 | 3.433 | 100 | 0.1 | 0.154 | |
| 8 | 0.6 | 2.575 | 120 | 0.08 | 0.132 | |
| 10 | 0.55 | 1.99 | 140 | 0.07 | 0.111 | |
| 12 | 0.5 | 1.616 | 150 | 0.065 | 0.104 | 201, 304, 316L, Brass |
| 14 | 0.45 | 1.362 | 160 | 0.065 | 0.094 | |
| 16 | 0.4 | 1.188 | 180 | 0.053 | 0.088 | |
| 18 | 0.35 | 1.06 | 200 | 0.053 | 0.074 | |
| 20 | 0.3 | 0.97 | 250 | 0.04 | 0.061 | |
| 26 | 0.28 | 0.696 | 300 | 0.035 | 0.049 | |
| 30 | 0.25 | 0.596 | 325 | 0.03 | 0.048 | |
| 40 | 0.21 | 0.425 | 350 | 0.03 | 0.042 | |
| 50 | 0.19 | 0.318 | 400 | 0.25 | 0.0385 |

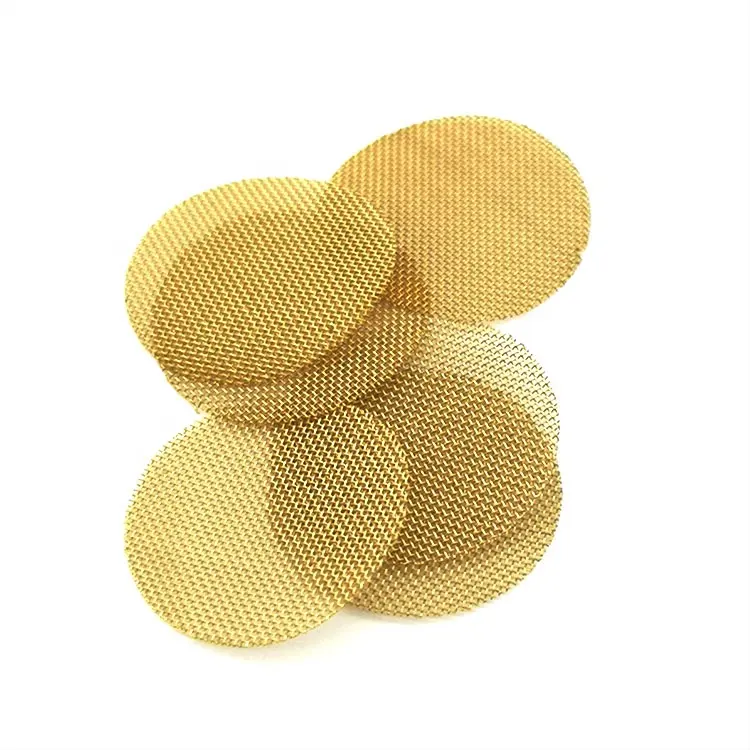

Plain Weave Brass Filter Discs

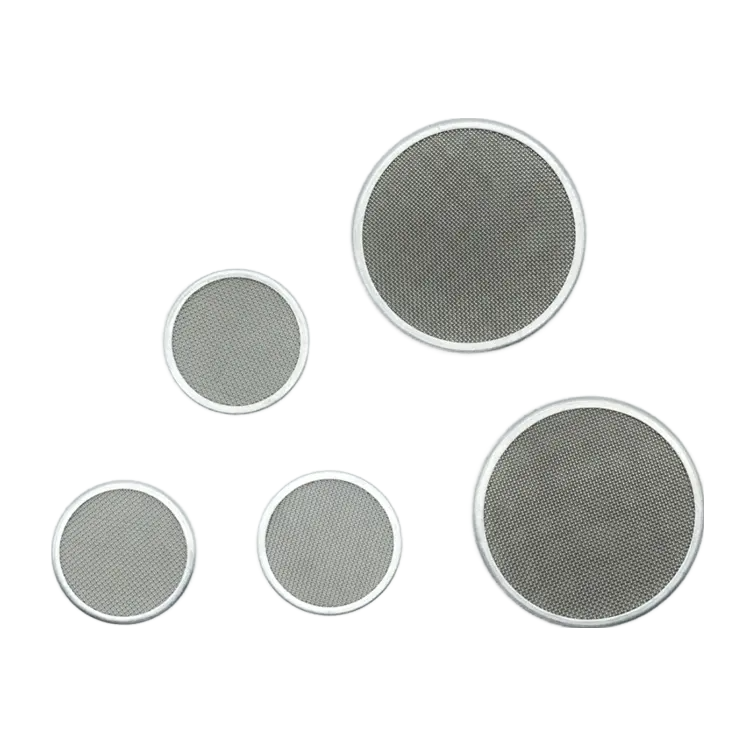

Plain Weave Wrapping Edge Wire Mesh Disc
Stainless Steel Woven Wire Mesh (Twill Weave) Disc Screen
| Mesh/inch | Wire Dia (mm) | Aperture (mm) | Material (AISI) |
|---|---|---|---|
| 250 × 250 | 0.040 | 0.063 | |
| 300 × 300 | 0.040 | 0.044 | |
| 325 × 325 | 0.035 | 0.043 | |
| 350 × 350 | 0.030 | 0.042 | 201, 304, 316L, Brass |
| 400 × 400 | 0.030 | 0.033 | |
| 450 × 450 | 0.028 | 0.028 | |
| 500 × 500 | 0.025 | 0.026 |

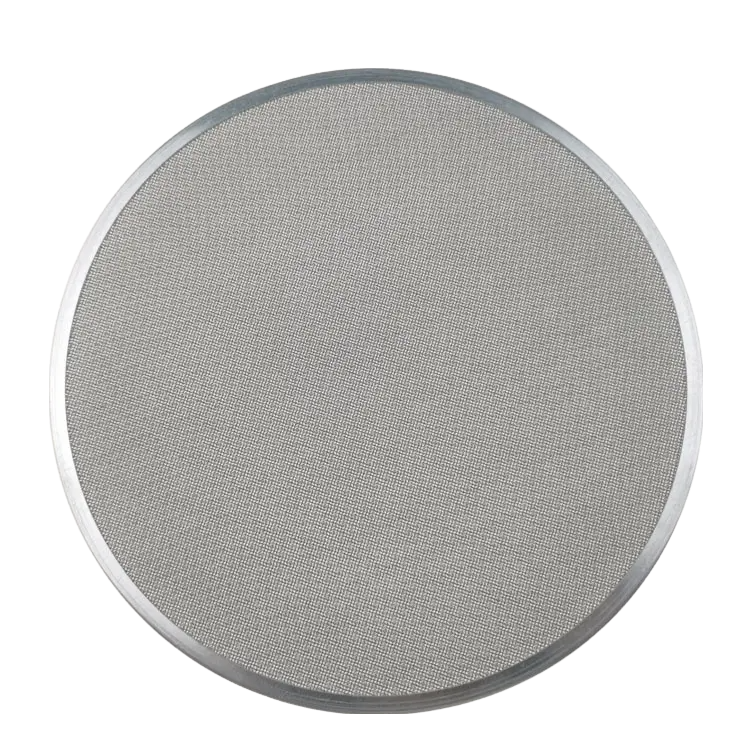

With Edge Wrapping Twill Weave Wire Mesh Disc

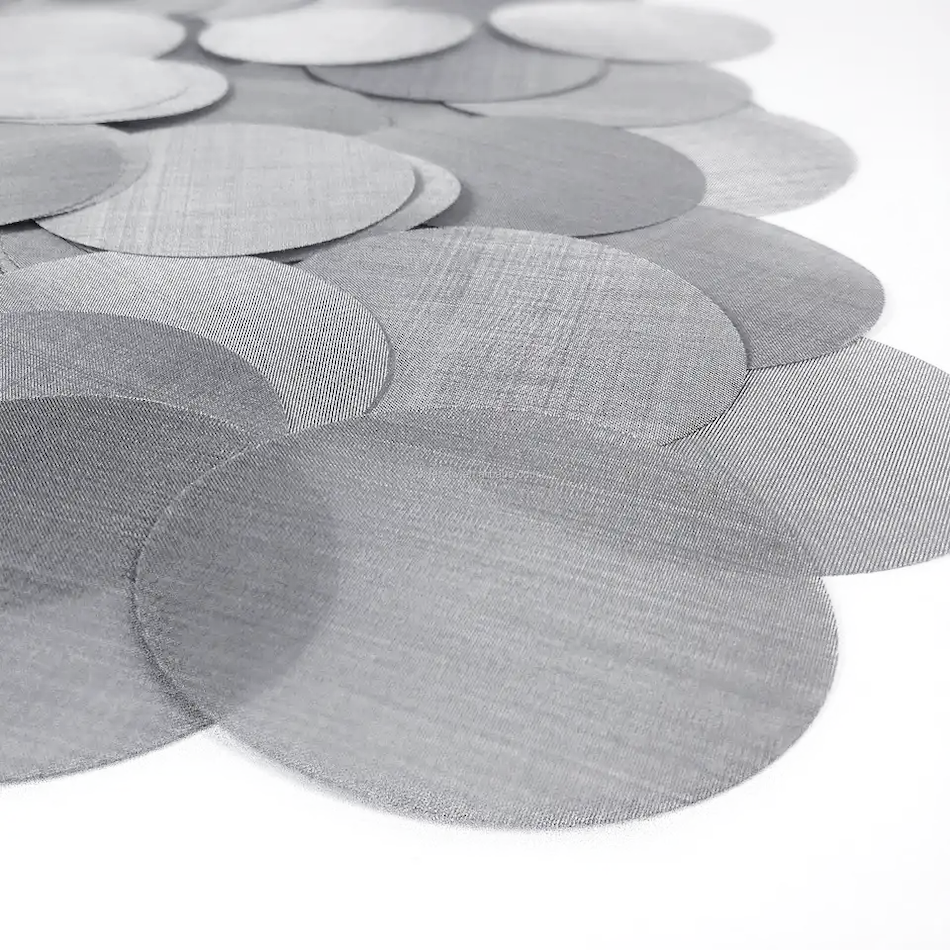

Twill Stainless Steel Mesh Discs
Stainless Steel Woven Wire Mesh (Dutch Weave) Disc Screen
| Mesh/inch | Wire Dia (mm) | Material (AISI) |
|---|---|---|
| 12 X 64 | 0.58/0.40 | |
| 24 X 110 | 0.36/0.25 | |
| 14 X 88 | 0.50/0.33 | |
| 30 X 150 | 0.18/0.14 | |
| 40 X 200 | 0.14/0.11 | |
| 50 X 250 | 0.10/0.071 | 304 or 316, brass |
| 80 X 700 | 0.06/0.05 | |
| 165 X 800 | 0.071/0.040 | |
| 165 X 1400 | 0.05/0.032 | |
| 200 X 1800 | 0.05/0.03 | |
| 325 X 2300 | 0.030/0.025 | 316L |
| 400 X 2800 | 0.030/0.02 |

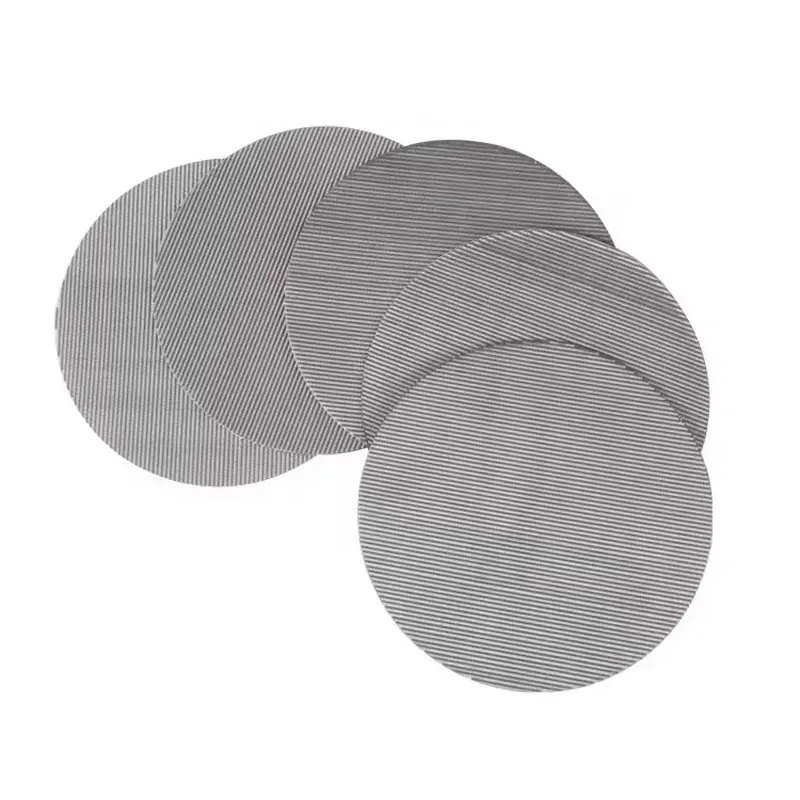

Dutch Weave Stainless Steel Mesh Filter Discs

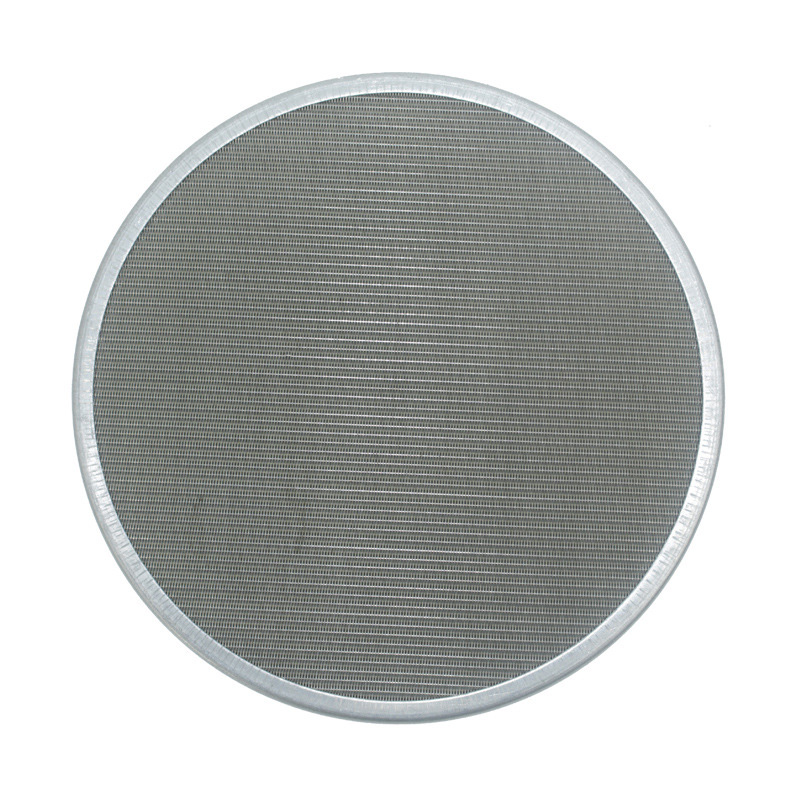

Dutch Weave Stainless Steel Wire Cloth Discs
Features
- Various material options.
- Different mesh sizes can be customized.
- The shape can be round, square, rectangular, etc.
- Manufacturing costs are relatively low.
- Resistant to specific corrosion and high temperatures.
- Easy to clean and maintain.
Applications
- Plastic Extrusion
- Hydraulic Oil And Fuel
- Smoke Pipe Filter
- Coffee And Tea Filters
- Noise Suppression
A Wire Mesh Disc is a circular grid specifically designed for filtration and separation applications. It's typically made from high-quality stainless steel to ensure optimal corrosion resistance and longevity.
It is widely used in both industrial and domestic settings, including liquid filtration, solid-liquid separation, gas filtration, and more. Whether you're straining, sieving, or filtering, it offers reliable performance.
Due to its precise construction, cleaning and maintenance are relatively straightforward. It's recommended to clean it periodically with a mild detergent and brush, then rinse with clean water.
Yes, we offer customization services, allowing for the creation of Wire Mesh Discs specific to your needs in terms of size and material.
The Wire Mesh Disc stands out due to its uniform mesh structure and high-quality materials, ensuring top-notch filtration performance and longevity.
