Sintered Filter

Saifilter's Sintered Metal Filters are renowned for their exceptional performance and versatility. These filters are designed to provide efficient and reliable filtration solutions across various industries, ensuring the removal of contaminants and impurities from liquids and gasses. Saifilter's commitment to quality and innovation makes their Sintered Metal Filters a trusted choice for critical filtration applications, contributing to enhanced product quality and process efficiency.

SAIFILTER sintered porous metal filter
mott sintered metal filters

The sintered filter working principle involves the use of a sintered metal mesh or powder to filter particles or fluids. Sintering is a manufacturing process that involves compacting metal particles at high temperatures and pressures to form a solid porous structure. A typical example of this is the Sintered Mesh Filter, which utilizes these sintered layers to achieve efficient filtration.

The sintered filter consists of multiple layers of this porous sintered material, where the size of the pores can be controlled during the manufacturing process. The working principle of the filter revolves around the concept of size exclusion, where particles larger than the pore size are trapped while smaller particles and fluids can pass through.

SAIFILTER sintered powder filter
SAIFILTER sintered candle filter

When a fluid or gas passes through the sintered filter, the particles present in the fluid are trapped on the filter's surface or within the pores, effectively separating them from the desired fluid or gas. The size of the particles that can be filtered depends on the pore size and the ability of the sintered material to capture those particles.

Sintered filters are commonly used in various industries, including chemical processing, oil and gas, pharmaceuticals, food and beverage, and wastewater treatment. They offer high durability, resistance to temperature and pressure, and can be easily cleaned and reused.

SAIFILTER Sintered fiber inspection
SAIFILTER porous sintered metal

Then What Exactly is a Sintered Metal?

A sintered metal is a type of material made by compacting and then heating metal powders to a temperature below their melting point. The process of sintering involves bonding the metal particles together, resulting in a solid piece. During sintering, the metal particles undergo diffusion and atomic rearrangement to create strong bonds between them.

Vacuum-Graphite-Furnace-Vacuum-Sintering-Furnace-Vacuum-Furnace-Heat-Treatment-for-Laboratory-Heat-Treatment
mott sintered metal

Sintered metals can have various properties depending on the specific metals and processing conditions used. They often exhibit high strength, good wear resistance, and excellent dimensional stability. They can be porous or non-porous, depending on the intended application.

SAIFILTER sintered nickel filter
SAIFILTER sintered metal filter

Sintered metal components are commonly used in a wide range of industries, including automotive, aerospace, construction, electronics, and manufacturing. They are used for applications such as bearings, filters, gears, bushings, cutting tools, and many others. The ability to produce complex shapes and achieve precise tolerances makes sintered metals a versatile choice for various engineering applications.

sintered powder filter cartridge
SAIFILTER sintered porous metal filter elements

Who invented the sintering and started to use the sintered products?

The first recorded use of sintering dates back to around 7000 BCE in ancient Mesopotamia, where clay was sintered to create pottery. The ancient Egyptians also used sintering techniques to produce pottery, glass, and jewelry.

In modern history, the development and advancement of sintering techniques can be attributed to several inventors and researchers. One of the notable contributors to sintering technology is Benjamin C. Tilghman, an American engineer who developed a sintering process for iron ore in the late 19th century. His process, known as the Tilghman process, revolutionized the iron and steel industry by allowing for the efficient production of iron and steel from lower-grade hematite ores.

SAIFILTER metal sintered filter
SAIFILTER sintered metal filter elements

Since then, sintering techniques have been widely adopted in various industries, including metallurgy, ceramics, electronics, and powder metallurgy. The use of sintered products has significantly contributed to the advancement of these industries in terms of providing greater strength, higher density, and improved performance of materials.



What the Sintering Metal Filter Manufacturing Process?

The sintering metal filter manufacturing process involves several steps:

1. Material Selection:

The first step is selecting the appropriate metal powder that will be used to create the filter. The selection is based on the desired properties such as filtration efficiency, corrosion resistance, and strength.

porous sintered powder
sintered porous metal filter Powder

2. Mixing:

The metal powder is then mixed with other additives such as binders and lubricants to form a homogenous mixture. These additives help in achieving the desired shape and properties during the subsequent processing steps.

3. Compaction:

The mixture is placed in a mold and compacted under high pressure to form a green compact. The pressure ensures that the powder particles are closely packed, which is essential for achieving the desired strength and porosity.

4. Shaping:

The green compact is then shaped into the desired form using various techniques such as die pressing, isostatic pressing, or injection molding. The choice of shaping method depends on the complexity of the filter shape and the desired precision.

5. Debinding:

In this step, the green compact is heated in a controlled atmosphere or under vacuum to remove the binders and lubricants. This process is known as debinding, and it is essential for eliminating the organic materials and reducing the porosity of the filter.

6. Sintering:

After debinding, the green compact is subjected to high temperatures in a furnace or kiln. Sintering helps in fusing the metal particles together, resulting in a solid and porous structure. The temperature and time are carefully controlled during sintering to prevent excessive grain growth while achieving the desired filter properties.

sintering-horz-1

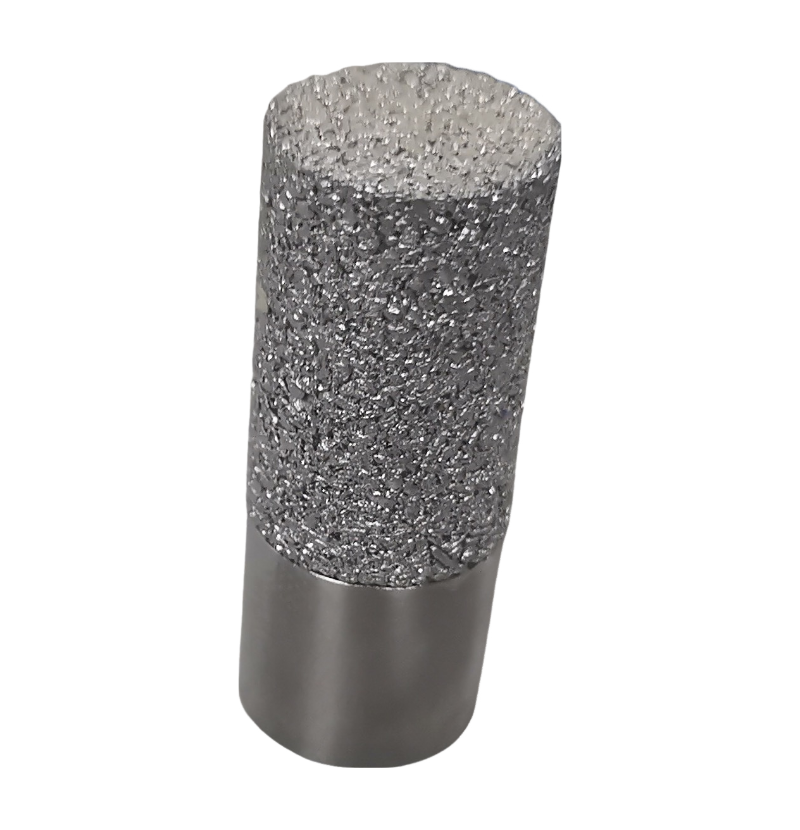

SAIFILTER sintered stainless steel filter

 7. Calibration:

The sintered filter is then calibrated to meet the precise dimensional and filtration specifications. This can involve machining, grinding, or other finishing techniques to achieve the desired shape and size.

8. Surface Treatment:

Depending on the specific application, the sintered filter may undergo additional surface treatments such as coating, plating, or impregnation to enhance its performance or protect it from corrosion.

9. Quality Control:

Throughout the manufacturing process, various quality control measures are implemented to ensure the filters meet the required specifications. These can include inspections, testing for porosity, flow rate, pressure drop, and other performance parameters.

10. Packaging:

Once the filters pass the quality control checks, they are appropriately packaged for shipment and distribution to customers.

Overall, the sintering metal filter manufacturing process involves a combination of powder metallurgy techniques, heat treatment, shaping, and finishing steps to produce high-quality filters with the desired properties.

Why to Use Metal Sintering to Make Filter?

Metal sintering is a popular process used to manufacture filters due to its numerous benefits. Here are some reasons why metal sintering is used to make filters:

1. Enhanced Filtration Efficiency:

Sintered metal filters have a high level of porosity, allowing them to efficiently capture and remove contaminants from fluids, gasses, or particulate matter. The controlled pore size and distribution in a sintered filter ensure a reliable and consistent filtration performance.

2. Durability and Strength:

Sintered metal filters are made by fusing metal particles together under high heat and pressure. This process creates a strong and durable filter that can withstand harsh operating conditions, including high temperatures, pressure differentials, and corrosive environments.

3. Customizable Design:

Metal sintering allows for the production of filters with specific geometries, shapes, and sizes, making it easier to meet unique requirements or fit specific equipment or machinery. The flexibility in design also enables the creation of complex filtration media structures with precise pore sizes and arrangements.

Filter cartridge 4
SAIFILTER sintered metal filter disc

4. Chemical and Temperature Resistance:

Metal sintered filters can be manufactured from various metals or metal alloys, such as stainless steel, bronze, or titanium. This allows the filters to have excellent chemical resistance, making them suitable for applications that involve aggressive chemicals or corrosive fluids. Additionally, sintered metal filters can withstand high temperatures, making them suitable for use in extreme operating conditions.

5. Easy Cleaning and Maintenance:

Sintered metal filters are typically easy to clean and maintain. They can withstand backwashing, ultrasonic cleaning, or chemical cleaning processes without experiencing degradation in performance or structural integrity. This makes metal sintered filters a cost-effective and long-lasting filtration solution.

6. Wide Range of Applications:

Metal sintered filters find applications in a wide range of industries, including automotive, aerospace, oil and gas, pharmaceutical, food and beverage, and wastewater treatment. They are used for various purposes such as air and gas filtration, liquid filtration, catalytic supports, and fluidization.

Overall, the use of metal sintering to make filters offers a range of advantages, including enhanced filtration efficiency, durability, customizability, chemical and temperature resistance, easy maintenance, and suitability for diverse applications.

sintered metal filter Filtration system.
sintered metal filter Filtration system

What are the Material Choices for Sintered Filters?

1. Stainless Steel Filters

Stainless steel is one of the most commonly used materials for sintered filters due to its excellent resistance to corrosion, high temperature tolerance, and good mechanical properties. Different grades offer specific advantages:

  • 316L : This is a low carbon version of 316 stainless steel. It's known for its excellent resistance to pitting, crevice corrosion, and overall durability. Its molybdenum content makes it more resistant to marine environments than 304.
  •  304L : A widely used stainless steel grade, 304L offers good corrosion resistance, excellent formability, and ease of fabrication. The 'L' signifies its low carbon content, which prevents sensitization during welding.
  •  310 : Notably used in high-temperature environments, 310 stainless steel can withstand temperatures up to 2100°F due to its high chromium and nickel content. It's ideal for applications requiring heat resistance.



  • 347 : This grade has added niobium and tantalum, which makes it suitable for high-temperature applications where carbide precipitation is a concern, such as in certain types of heat exchangers.

  •   430 : As a ferritic stainless steel, 430 offers good corrosion resistance in mildly corrosive environments and good oxidation resistance at elevated temperatures.

SAIFILTER sintered stainless steel tube
SAIFILTER sintered steel filter

2. Bronze

Bronze sintered filters are known for their good resistance to wear and corrosion, especially in seawater environments. They provide a more cost-effective solution than some of the more specialized metals and can be used in a wide range of applications, especially where the conductivity of the filter is important.

3. Inconel® Alloys

Inconel® is a family of austenitic nickel-chromium-based superalloys, which are known for their remarkable resistance to oxidation and corrosion, even in extreme environments.

  •  Inconel® 600 : Primarily made of nickel and chromium, it offers good resistance to high-temperature oxidation and is often used in chemical processing and pressure vessels.
  •  Inconel® 625 : Known for its strength and superb corrosion resistance, especially in marine environments. It also has excellent fatigue strength.
  •  Inconel® 690 : Offers a high chromium content, making it particularly resistant to many aggressive chemicals and has superior corrosion and stress-corrosion cracking resistance.

4. Nickel and Monel® Alloys

  • Nickel 200 : A commercially pure wrought nickel, it provides excellent corrosion resistance and electrical conductivity. It's often used in food processing and chemical industries.

  •  Monel® 400 (70 Ni-30 Cu) : A corrosion-resistant alloy that combines nickel and copper. It's particularly effective against reducing acids and alkalis and has good thermal conductivity.
SAIFILTER sintered bronze filter
SAIFILTER sintered brass filter.pic

Depending on specific requirements, various other alloys can be used for sintered filters to match unique properties like resistance to specific chemicals, heat, and pressures.

In conclusion, the choice of material for sintered filters largely depends on the specific application's requirements, be it temperature resistance, chemical exposure, or mechanical strength. These diverse materials cater to a wide range of industrial and research needs.

How Sintered Metal Filters Work?

Sintered metal filters are a crucial component in many filtration systems, offering efficient contaminant retention and backwash capabilities. Understanding their operation involves examining key factors such as contaminant retention, backwash capability, and pressure drop. Let's delve deeper into how these filters function:

Contaminant Retention

One of the primary functions of sintered metal filters is their ability to retain contaminants from the fluid they process. This retention is influenced by various factors, including:

  • Contaminant Characteristics: The nature of the particles present in the fluid is a critical factor. Characteristics such as particle shape, density, and size determine how effectively the filter can capture and retain these contaminants.
  • Filter Element Design: The filter's design, including pore size and structure, plays a significant role in its ability to retain contaminants. Sintered metal filters are engineered with precise pore sizes to target specific particles.

Backwash Capability

Sintered metal filters also boast a valuable backwash capability. This feature allows the filter to cleanse itself periodically, maintaining its efficiency over time. Here's how it works:

  • Increased Pressure Drops: As contaminants accumulate within the filter element, the pressure drop across the filter increases. This pressure drop is a result of restricted flow due to blocked pores.
  • Absolute Pressure Threshold: The backwash capability comes into play when the increased pressure drop reaches a specific threshold. At this point, the filter initiates a cleaning cycle to remove accumulated contaminants.
  • Constant Fluid Flow: To ensure uninterrupted operation, sintered metal filters maintain a constant flow of fluid during the backwash process. This is essential in applications where continuous filtration is critical.
mott filters sintered metal
mott porous metal

Applications of Sintered Filters

Sintered filters find a wide range of applications due to their versatility and efficiency in both liquid and gas filtration/separation processes. Let's explore some of the key uses of sintered filters:

1. Liquid & Gas Filtration/Separation

Sintered filters excel in the fundamental task of filtration and separation.They are used in various industries to remove impurities, particulate matter, and contaminants from both liquids and gasses. Their precisely engineered pore structures make them highly effective at this task, ensuring the purity of the filtered product.

2. Sparger

Sintered filters play a vital role in sparging applications.Spargers are devices used to introduce gasses  into liquids, and sintered filters serve as the medium through which the gas is dispersed. This is essential in processes like soda carbonation and beer carbonation, where controlled gas distribution is critical for achieving the desired carbonation levels in beverages.

3. Oxygen Stripping of Edible Oils

In the food industry, sintered filters are used for oxygen stripping of edible oils.Oxygen can cause spoilage in oils, leading to rancidity. Sintered filters help remove oxygen from oils, prolonging their shelf life and ensuring product quality.

4. Breather Vents

Sintered filters find applications in breather vents. Breather vents are used to equalize pressure while preventing the ingress of contaminants and moisture. Sintered filters serve as efficient barriers against external elements, making them ideal for protecting equipment and machinery.

5. Sensor Protection

Sintered filters are employed to protect sensors. Sensors used in various industries are often sensitive to environmental conditions. Sintered filters shield sensors from dust, moisture, and particulates, ensuring accurate and reliable measurements.

6. Flow Control (Throttling/Dampening)

Flow control applications benefit from sintered filters.By adjusting the flow rate of liquids or gases, sintered filters serve as throttling or dampening elements. They help regulate and control the flow of fluids in systems, ensuring precise and stable processes.

7. Air Exhaust Silencers

Sintered filters are used as air exhaust silencers. In industrial settings where noise reduction is crucial, sintered filters help attenuate the noise generated during air exhaust. They provide both filtration and sound-dampening capabilities.

8. Flow/Pressure Equalization8. Flow/Pressure Equalization

Sintered filters contribute to flow and pressure equalization.In systems where maintaining consistent pressure or flow is essential, sintered filters help balance and stabilize these parameters, ensuring smooth operation.

Applications of Sintered Metal Filters in Various Industries

Sintered metal filters play a vital role in a wide range of industries, providing effective filtration solutions for diverse applications. Let's explore some of the key sectors where sintered metal filters find extensive use:

1. Chemical Processing

In the realm of chemical processing, sintered metal filters are indispensable. They are employed to purify and clarify various chemical substances, ensuring the removal of impurities and contaminants. These filters contribute to the production of high-quality chemicals and intermediates, meeting stringent industry standards for purity.

2. Petroleum Refining

The petroleum refining industry relies heavily on sintered metal filters. These filters are crucial in the refining process to separate and filter out solids, catalysts, and other contaminants from crude oil and its derivatives. By enhancing the purity and quality of refined products, sintered metal filters aid in the production of fuels, lubricants, and petrochemicals.

3. Power Generation

Power generation facilities, including nuclear, fossil fuel, and renewable energy plants, benefit from sintered metal filters. These filters are used in various applications, such as ensuring the cleanliness of cooling water, maintaining the integrity of lubricating oils, and protecting sensitive equipment from contamination. Their reliability contributes to the efficient operation of power generation systems.

4. Gas Production

Sintered metal filters play a critical role in the gas production industry. Whether it's natural gas, industrial gasses, or specialty glasses, these filters are employed to remove particulate matter, moisture, and impurities. By achieving high levels of gas purity, sintered metal filters support safe and efficient gas production processes.

5. Food & Beverage

In the food and beverage industry, product quality and safety are paramount. Sintered metal filters are used to ensure the cleanliness and purity of liquids and gasses in various stages of food and beverage production. From filtering beverages during the production of soft drinks to clarifying edible oils, these filters help maintain the highest standards of hygiene and product quality.

Sintered metal filters are highly versatile and customizable, making them adaptable to the unique requirements of each industry. They are known for their durability, efficiency, and longevity, making them a preferred choice in critical filtration applications across chemical processing, petroleum refining, power generation, gas production, and the food and beverage sector. As technology continues to advance, sintered metal filters will likely find even more applications in emerging industries and innovative processes.
